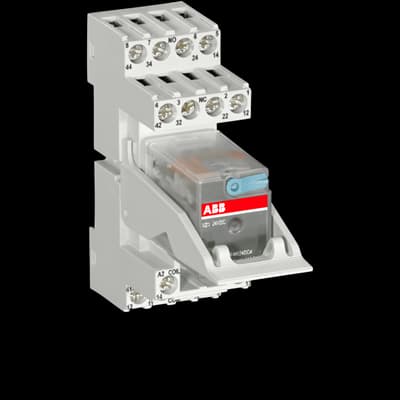

Product Model

CR-M2LSH

Manufacturer

ABB

Key Features

1Efficient Electrical Isolation: The CR-M2LSH socket ensures reliable electrical isolation between electronic controls and sensor/actuator levels.
2Customizable Function Modules: Compatible with pluggable function modules like RC elements and varistors for enhanced customization.
3Screw Terminals for Easy Installation: Easy to install with screw terminals, reducing setup time and effort.
4Compatibility with 2 c/o CR-M Relays: Designed specifically for 2 c/o (SPDT) CR-M relays, ensuring precise signal matching.
5Compliance with EU Directive 2011/65/EU: Meets RoHS standards, ensuring environmental compliance and sustainability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product Net Width	16 mm	Product Net Height	69 mm
Product Net Depth / Length	76 mm	Product Net Weight	0.061 kg
Function	Pluggable miniature interface relay CR-MX Accessory for interface relays CR-M	Sub-Function	Relay with built in LED Socket for miniature relays
Sub-Function 2	Logical socket for miniature relay 2 c/o	Rated Control Supply Voltage (Us)	220 V DC
Rated Operational Voltage	250 V	Output Signal	250 V / 5 A
Terminal Type	Screw Terminals	Rated Operational Current AC-12 (Ie)	(230 V) 12 A
Rated Insulation Voltage (Ui)	2 V	Mounting Position	1
Standards	CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508	Connecting Capacity Main Circuit UL/CSA	Flexible with Ferrule 2x 20-16 AWG Rigid 2x 20-14 AWG Stranded 2 x 20-14 AWG
Flammability According to UL94	V-0	Ambient Air Temperature	Operation -40 ... +70 Â°C Storage -40 ... +70 Â°C
Maximum Operating Altitude Permissible	2000 m	Object Classification Code	K
ETIM 7	EC001456 - Relay socket	ETIM 8	EC001456 - Relay socket
ETIM 9	EC001456 - Relay socket	eClass	V11.0 : 27371603
UNSPSC	39122335	Manufacturer ID	1SVR405651R4100

Specifications may be subject to change without notice
