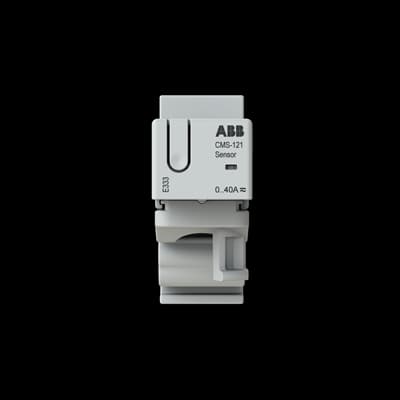

Product Model
CMS-121DR
Key Features
- 1Accurate current measurement with ±1% FS accuracy.
- 2Measuring range of 0.1 to 40 A for versatile applications.
- 3Compact design with 17.4 mm net width and 44 mm net height.
- 4Easy installation via DIN-Rail mounting for universal use.
- 5Reliable operation in ambient temperatures from -25°C to +70°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Compatibility | SCU100 & SCU200 | Frequency (f) | Rated Current 50 Hz |
| Power Consumption (@P<span style="font-size:x-small;">cons</span>) | At Rated Load 0.18 W | Communication Interface | InSite bus(Flat cable) |
| Accuracy | 1% FS | Measuring Range | 0.1â¦40 A |
| Mounting Type | DIN-Rail | Sensor Type | Open-core (18 mm) |
| Output | Other | Ambient Air Temperature | Operation -25 ... 70 °C |
| Environmental Information | 2CCC481001D0202 | Product Net Width | 17.4 mm |
| Product Net Height | 44 mm | Product Net Depth / Length | 51.5 mm |
| Product Net Weight | 15 g | ETIM 8 | EC002580 - Flow monitoring equipment |
| ETIM 9 | EC002580 - Flow monitoring equipment | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 90303900 |
| UNSPSC | 41111928 | eClass | V11.0 : 27210123 |
| IDEA Granular Category Code (IGCC) | 6160 >> Current sensors | Object Classification Code | P |
| Manufacturer ID | 2CCA880241R0001 |
Specifications may be subject to change without notice
