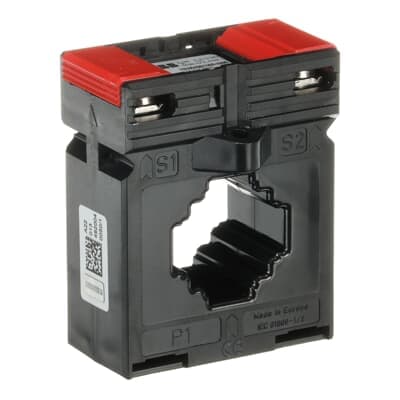

Product Model
CM-CT 50/1
Key Features
- 1High Accuracy Class 1: Ensures precise current measurement with a burden of 1 VA.
- 2DIN Rail Mounting: Convenient snap-on mounting for easy installation on DIN rails.
- 3Compact Design: Dimensions are 61x78.5x48mm, making it space-efficient in control panels.
- 4Robust Construction: Built with durable materials, including an insulating protective cap and bar fastening screws.
- 5Versatile Application: Suitable for various industrial automation and control systems, ensuring reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 61 mm | Product Net Height | 78.5 mm |
| Product Net Depth / Length | 48 mm | Product Net Weight | 0.31 kg |
| Function | Current transformer | Standards | IEC/EN 63000 IEC/EN 61869-1 IEC/EN 61869-2 |
| Object Classification Code | T | ETIM 7 | EC002048 - Current transformer |
| ETIM 8 | EC002048 - Current transformer | ETIM 9 | EC002048 - Current transformer |
| eClass | V11.0 : 27210902 | UNSPSC | 39121032 |
| E-Number (Finland) | 6701057 | E-Number (Norway) | 4187310 |
| Manufacturer ID | 1SVR450116R1000 |
Specifications may be subject to change without notice
