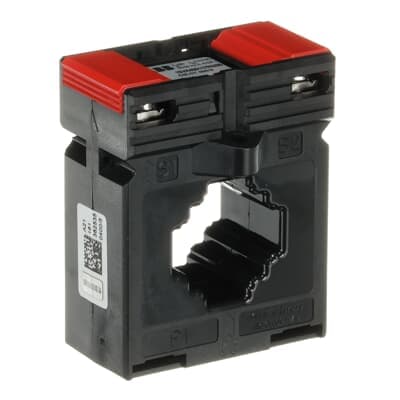

Product Model
CM-CT 400/5
Key Features
- 1High precision current transformation with accuracy class 1.
- 2Compact design for easy installation in control cabinets.
- 3Suitable for DIN rail mounting or panel mounting.
- 4Rated primary current of 400A and secondary rated current of 5A.
- 5Ideal for industrial applications requiring precise current measurement.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 61 mm | Product Net Height | 78.5 mm |
| Product Net Depth / Length | 48 mm | Product Net Weight | 0.26 kg |
| Function | Current transformer | Standards | IEC/EN 63000 IEC/EN 61869-1 IEC/EN 61869-2 |
| Object Classification Code | T | ETIM 7 | EC002048 - Current transformer |
| ETIM 8 | EC002048 - Current transformer | ETIM 9 | EC002048 - Current transformer |
| eClass | V11.0 : 27210902 | UNSPSC | 39121032 |
| E-Number (Norway) | 4187325 | Manufacturer ID | 1SVR450117R5200 |
Specifications may be subject to change without notice
