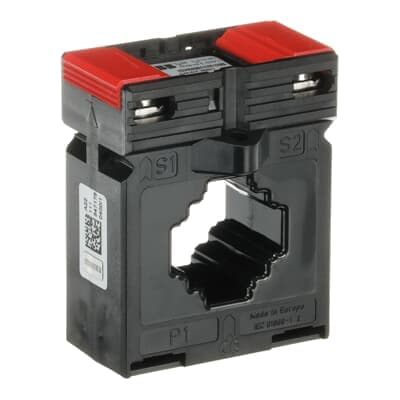

Product Model
CM-CT 400/1
Key Features
- 1High precision current transformation with class 1 accuracy.
- 2Rated primary current of 400 A and secondary rated current of 1 A.
- 3Burden of 5 VA for efficient power handling.
- 4Versatile mounting options including DIN rail and snap-on accessories.
- 5Compliant with IEC/EN 63000, IEC/EN 61869-1, and IEC/EN 61869-2 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 61 mm | Product Net Height | 78.5 mm |
| Product Net Depth / Length | 48 mm | Product Net Weight | 0.27 kg |
| Function | Current transformer | Standards | IEC/EN 63000 IEC/EN 61869-1 IEC/EN 61869-2 |
| Object Classification Code | T | ETIM 7 | EC002048 - Current transformer |
| ETIM 8 | EC002048 - Current transformer | ETIM 9 | EC002048 - Current transformer |
| eClass | V11.0 : 27210902 | UNSPSC | 39121032 |
| E-Number (Norway) | 4187316 | Manufacturer ID | 1SVR450117R1200 |
Specifications may be subject to change without notice
