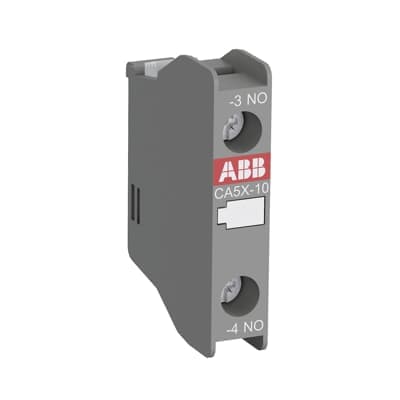

Product Model
CA5X2-10
Key Features
- 1Reliable Performance: Built with high-quality materials for long-lasting durability and consistent performance.
- 2Versatile Mounting: Front-mounted design with screw terminals, compatible with A and N series contactors.
- 3High Switching Frequency: Supports up to 3600 cycles per hour, ensuring efficient operation in demanding environments.
- 4Comprehensive Certifications: Meets or exceeds international standards including IEC 60947-1 and UL/CSA certifications.
- 5Easy Installation: Simple mounting process with screw terminals, reducing installation time and effort.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 10 mm | Product Net Depth / Length | 37.3 mm |
| Product Net Height | 47.3 mm | Product Net Weight | 0.014 kg |
| Number of Auxiliary Contacts NO | 1 | Number of Auxiliary Contacts NC | 0 |
| Terminal Type | Screw Terminals | Suitable For | A2X06â¦A2X96 |
| Object Classification Code | K | ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block | ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 | UNSPSC | 39121500 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block | Manufacturer ID | 1SBN018910R1010 |
Specifications may be subject to change without notice
