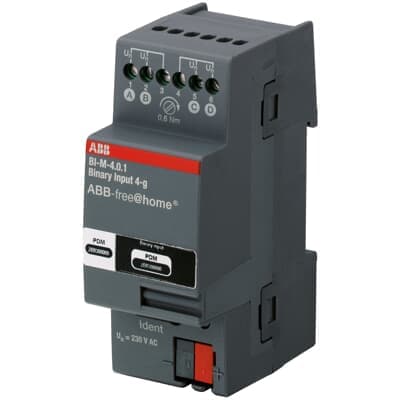

Product Model
BI-M-4.0.1
Key Features
- 1Detects AC/DC signals of 10-230V via 4 channels.
- 2Compatible with ABB-free@home systems for home automation.
- 3Compact dimensions: 90 mm height, 64.5 mm depth, 36 mm width.
- 4IP20 degree of protection for reliable operation.
- 5Easy installation via DIN rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | IP20 | Data Sheet, Technical Information | 2CDG941150P0002 |
| Number of LEDs | 1 | Number of Digital Inputs | 4 |
| Number of Inputs | Analog (0 ... 10 V / 4 ... 20 mA) 4 | Compatible Bus Systems | free@home (TP) |
| Product Range | free@home | Manual Operation | No |
| Number of Batteries | 0 | Width in Number of Modular Spacings | 2.0 |
| Product Net Width | 36 mm | Product Net Height | 90 mm |
| Product Net Depth / Length | 64.5 mm | Product Net Weight | 0.1 kg |
| Built-In Depth (t2) | 64.5 mm | Dimension Diagram | 2CDC072025F0017 |
| ETIM 9 | EC000688 - Binary input for bus system | eClass | V11.0 : 27143121 |
| Object Classification Code | A | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | Manufacturer ID | 2CDG510004R0011 |
Specifications may be subject to change without notice
