Product Model

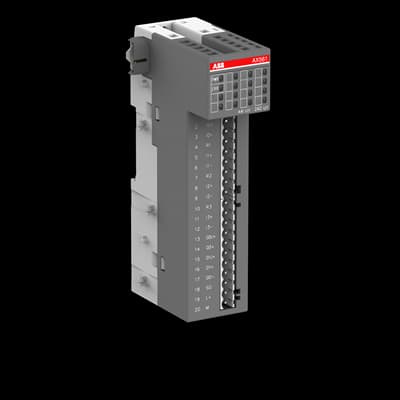

AX561
Key Features
- 14 configurable analog inputs and 2 analog outputs for diverse signal processing.
- 2Galvanic isolation protects against electrical noise and ground loops, ensuring signal accuracy.
- 3Compatible with a wide operating temperature range (-25°C to +70°C) for harsh industrial environments.
- 4Easy setup and maintenance with simple configuration and wiring, compatible with ABB S500 PLCs.
- 512-bit resolution delivers detailed analog-to-digital conversion for precise control in industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.122 kg | Product Net Depth / Length | 135 mm |
| Product Net Height | 74 mm | Product Net Width | 34 mm |
| Gross Weight | 0.225 kg | Package Level 1 Depth / Length | 93 mm |
| Package Level 1 Height | 63 mm | Package Level 1 Width | 170 mm |
| Package Level 1 Units | 1 carton | Function | 4 AI: U, I. 2 AO: U, I |
| Number of Analog Configurable I/Os | 0 | Analog Inputs | 4 |
| Input Signal | U, I | Analog Outputs | 2 |
| Output Signal | U, I | Resolution | Analog Input 12 bit Analog Output 12 bit |
| Connection Type | Pluggable | Degree of Protection | Housing IP20 |
| Ambient Air Temperature | Operation 0 ... +60 °C Storage -40 ... +70 °C | Product Main Type | AX561 |
| Product Name | Distributed Automation I/Os | eClass | 27-24-22-02 |
| ETIM 8 | EC001420 - PLC analogue I/O-module | UNSPSC | 32151705 |
| SCIP | c887cf92-28a3-4b16-8e08-37da9806c17f Germany (DE) | WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1TNE968902R1301 |
Specifications may be subject to change without notice
