Product Model

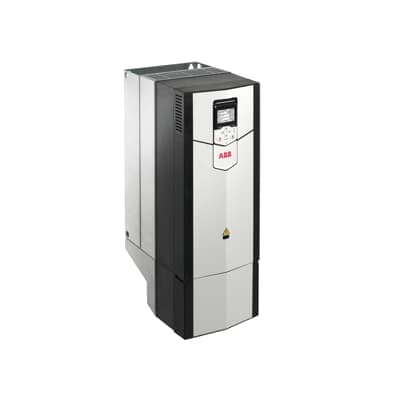

ACS880-01-124A-5
Key Features
- 1Compact design for easy installation, commissioning, and maintenance.
- 2Integrated safety features including safe torque off (STO) as standard.
- 3Supports various motor types including synchronous reluctance motors.
- 4Intuitive control panel with USB connection and removable memory unit.
- 5Built-in choke and controllable cooling fan for efficient operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 45 kg | Product Net Depth / Length | 357 mm |
| Product Net Height | 726 mm | Product Net Width | 251 mm |
| Package Level 1 Depth / Length | 850 mm | Package Level 1 Height | 580 mm |
| Package Level 1 Width | 310 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R6 | Input Voltage (Uin) | 380 ⦠500 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 96 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 118 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 124 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 55 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 75 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 75 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 3ABD00037856-D |
Specifications may be subject to change without notice
