Product Model

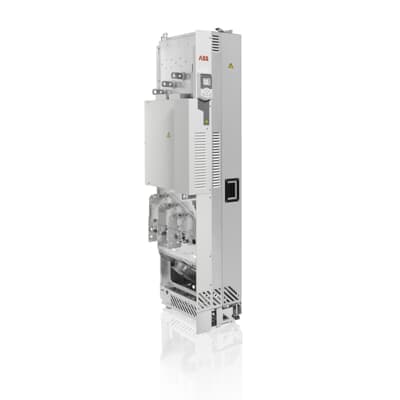

ACS580-04-820A-4
Key Features
- 1High power output: 450KW, 600HP
- 2Versatile applications: Suitable for compressors, conveyors, pumps, and more
- 3Built-in essential features: Simplifies drive selection and reduces additional hardware needs
- 4Robust design: Rugged and reliable for various environments
- 5Easy setup and maintenance: Fast commissioning and straightforward settings menu
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 199 kg | Product Net Depth / Length | 529 mm |
| Product Net Height | 1662 mm | Product Net Width | 345 mm |
| Package Level 1 Depth / Length | 1000 mm | Package Level 1 Height | 500 mm |
| Package Level 1 Width | 400 mm | Package Level 1 Units | 0 carton |
| Number of Phases | 3 | Degree of Protection | IP00 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R11 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Cabinet-built_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 625 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 810 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 820 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 355 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 450 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 450 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 3ABD00036865-D |
Specifications may be subject to change without notice
