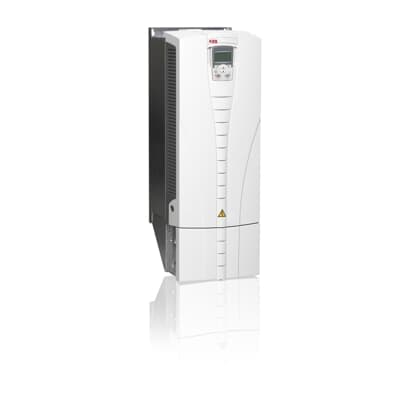

Product Model
ACS550-01-125A-4
Key Features
- 1Compact and robust design suitable for diverse industrial applications.
- 2Efficient motor speed regulation with a nominal output current of 125A.
- 3IP21 enclosure rating provides protection against solid foreign objects.
- 4Wall-mounted installation for straightforward integration into various industrial environments.
- 5Operates at 50/60 Hz with an input voltage range of 380-480V, delivering 55 kW of output power.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 45 kg | Product Net Depth / Length | 814 mm |
| Product Net Height | 306 mm | Product Net Width | 315 mm |
| Package Level 1 Depth / Length | 830 mm | Package Level 1 Height | 450 mm |
| Package Level 1 Width | 335 mm | Package Level 1 Units | 0 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R5 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 87 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 125 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 45 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 55 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 3ABD68589657 |
Specifications may be subject to change without notice
