Product Model

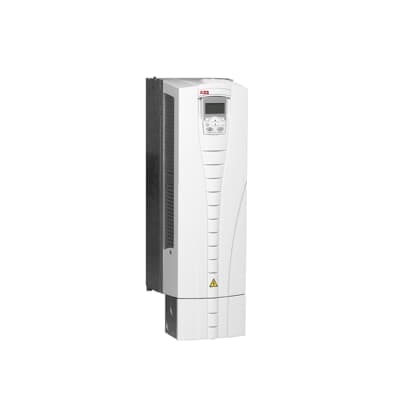

ACS550-01-087A-4
Key Features
- 1Saves energy with built-in counters displaying kWh, CO2 emissions, and cost.
- 2Analyzes process data for optimized drive and motor dimensioning.
- 3Utilizes FlashDrop tool for faster and easier drive setup and commissioning.
- 4Includes real-time clock for timed tracing of faults and parameter setting.
- 5Features IP21 enclosure rating for reliable operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 26 kg | Product Net Depth / Length | 800 mm |
| Product Net Height | 410 mm | Product Net Width | 310 mm |
| Package Level 1 Depth / Length | 800 mm | Package Level 1 Height | 400 mm |
| Package Level 1 Width | 300 mm | Package Level 1 Units | 0 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R4 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 72 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 87 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 37 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 45 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 3AUA0000013108-D |
Specifications may be subject to change without notice
