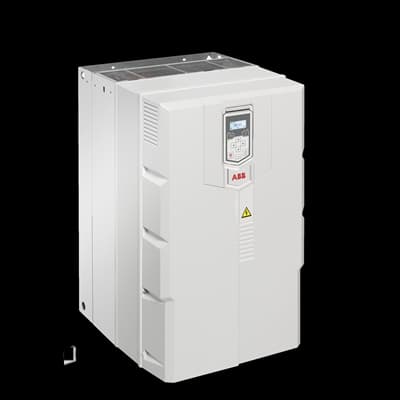

Product Model
ACS530-01-430A-4
Key Features
- 1Built to withstand various industrial environments with a rugged and robust design.
- 2Ensures safety with the Safe Torque Off (STO) function, compliant with EU safety standards.
- 3Achieves IE2 efficiency level, reducing energy consumption and saving costs.
- 4Controls compressors, conveyors, pumps, centrifuges, fans, and other variable and simple constant torque applications.
- 5Features a standard graphical interface control panel for simple setup and commissioning.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 84.8 kg | Product Net Depth / Length | 418 mm |
| Product Net Height | 680 mm | Product Net Width | 300 mm |
| Package Level 1 Depth / Length | 1160 mm | Package Level 1 Height | 650 mm |
| Package Level 1 Width | 490 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R9 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 400 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 430 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 200 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 250 kW | Apparent Power Output | 298.0 kV·A |
| Efficiency Level | IE2 | Standby Loss | 80 W |
| Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
| WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00039910-D |
Specifications may be subject to change without notice
