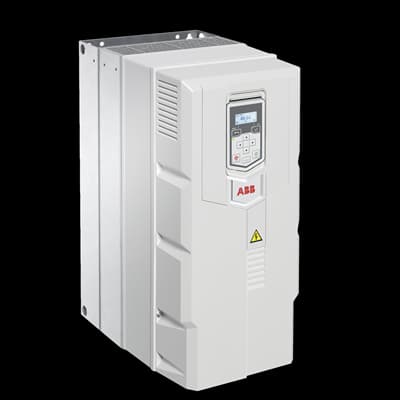

Product Model
ACS530-01-145A-4
Key Features
- 1Versatile Control: Controls compressors, conveyors, pumps, centrifuges, and fans with variable and simple constant torque applications.
- 2Rugged Design: Built with a rugged and robust design suitable for various environments.
- 3Fast Setup: Enables fast setup, commissioning, use, and maintenance.
- 4Wide Compatibility: Compatible with a wide range of industrial equipment.
- 5Extended Warranty: Guaranteed for 12 months from the date of delivery, with some products guaranteed for 18 months and repaired products for 6 months after repair.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 42.6 kg | Product Net Depth / Length | 369 mm |
| Product Net Height | 548 mm | Product Net Width | 252 mm |
| Package Level 1 Depth / Length | 850 mm | Package Level 1 Height | 580 mm |
| Package Level 1 Width | 310 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R6 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 138 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 145 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 75 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 75 kW | Apparent Power Output | 100.0 kV·A |
| Efficiency Level | IE2 | Standby Loss | 36 W |
| Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
| WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00039815-D |
Specifications may be subject to change without notice
