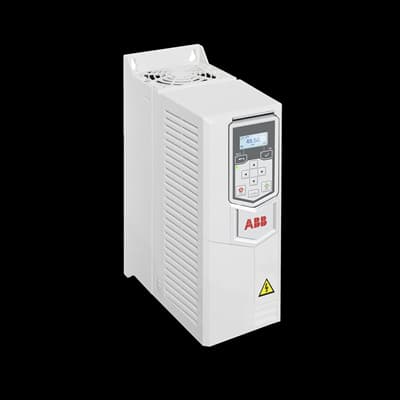

Product Model
ACS530-01-03A4-4
Key Features
- 1Adjust motor speed and torque with high precision for optimal performance in industrial applications.
- 2Suitable for pumps, fans, compressors, and conveyors, ensuring reliable operation across diverse industries.
- 3Configure with different options and functions to meet specific application requirements.
- 4Built-in STO (Safe Torque Off) function ensures safety of equipment and personnel, meeting EU safety standards.
- 5Features enhanced coating and independent air ducts for stable operation in high-temperature and high-humidity environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 4 kg | Product Net Depth / Length | 223 mm |
| Product Net Height | 331 mm | Product Net Width | 125 mm |
| Package Level 1 Depth / Length | 525 mm | Package Level 1 Height | 425 mm |
| Package Level 1 Width | 225 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R1 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 3.1 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 3.3 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 1.1 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 1.1 kW | Apparent Power Output | 2.3 kV·A |
| Efficiency Level | IE2 | Standby Loss | 14 W |
| Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | Frequency Converter |
| Manufacturer ID | 3AXD50000747511 |
Specifications may be subject to change without notice
