Product Model

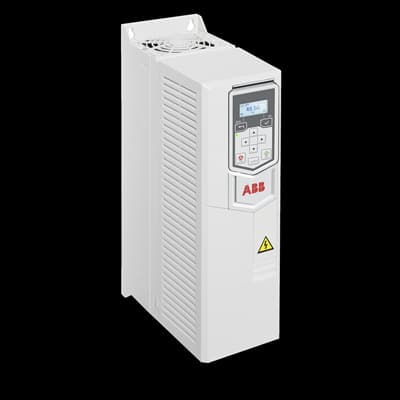

ACS530-01-018A-4
Key Features
- 1The ACS530-01-018A-4 offers reliable and efficient power control, ensuring optimal performance in industrial applications.
- 2This module is brand new and original, ensuring you receive a genuine ABB product.
- 3Its compact design makes it easy to integrate into various systems, saving space and enhancing overall efficiency.
- 4Suitable for a wide range of applications including HVAC, textile, and food and beverage industries.
- 5Comes with a 1-2 year warranty, providing peace of mind and extended service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 6 kg | Product Net Depth / Length | 229 mm |
| Product Net Height | 432 mm | Product Net Width | 125 mm |
| Package Level 1 Depth / Length | 425 mm | Package Level 1 Height | 620 mm |
| Package Level 1 Width | 225 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R2 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 16.2 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 17 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 7.5 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 7.5 kW | Apparent Power Output | 12.0 kV·A |
| Efficiency Level | IE2 | Standby Loss | 15 W |
| Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | Frequency Converter |
| Manufacturer ID | 3AXD50000747573 |
Specifications may be subject to change without notice
