Product Model

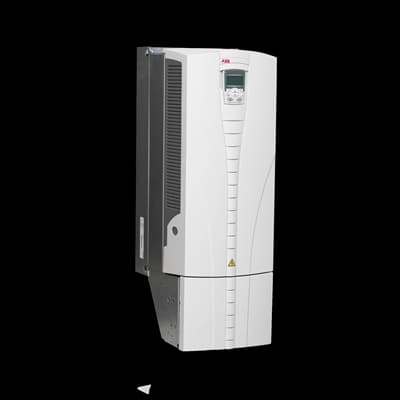

ACS510-01-246A-4
Key Features
- 1132 kW inverter drive for demanding industrial applications.
- 2IE2 efficiency level reduces energy consumption and operating costs.
- 3Simple installation process saves time and minimizes downtime.
- 4Intuitive operation with built-in help buttons and parameter setting menus.
- 5Patent-pending swinging choke for superior harmonic reduction and noise optimization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 76 kg | Product Net Depth / Length | 955 mm |
| Product Net Height | 420 mm | Product Net Width | 350 mm |
| Package Level 1 Depth / Length | 970 mm | Package Level 1 Height | 560 mm |
| Package Level 1 Width | 370 mm | Package Level 1 Units | 0 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R6 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 245 A |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 132 kW | Apparent Power Output | 170 kV·A |
| Efficiency Level | IE2 | Standby Loss | 41 W |
| Temperature Rating | 40 °C | UNSPSC | 39122001 |
| WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00022031-D |
Specifications may be subject to change without notice
