Product Model

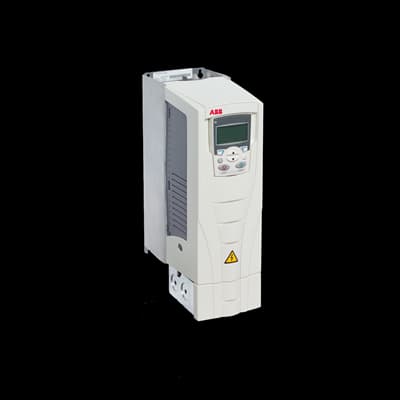

ACS510-01-09A4-4
Key Features
- 1High-Performance Drive Solution: The ACS510-01-09A4-4 ABB inverter provides a high-performance drive solution suitable for various industrial applications.
- 2Triple Output Capability: Equipped with triple output, this inverter offers flexibility and versatility in motor control.
- 3Customizable Applications: Customization options based on EC61131-3 programming tool ensure specific application requirements are met.
- 4Reliable Safety Performance: Standard safety torque interruption and optional security function modules ensure reliable safety performance.
- 5Direct Torque Control (DTC): ABB's motor control technology provides speed and torque control for all applications and almost any AC motor.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 6.1 kg | Product Net Depth / Length | 465 mm |
| Product Net Height | 365 mm | Product Net Width | 225 mm |
| Package Level 1 Depth / Length | 490 mm | Package Level 1 Height | 400 mm |
| Package Level 1 Width | 240 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R1 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 9.4 A |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 4 kW | Apparent Power Output | 6.5 kV·A |
| Efficiency Level | IE2 | Standby Loss | 11 W |
| Temperature Rating | 40 °C | UNSPSC | 39122001 |
| WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00015745-D |
Specifications may be subject to change without notice
