Product Model

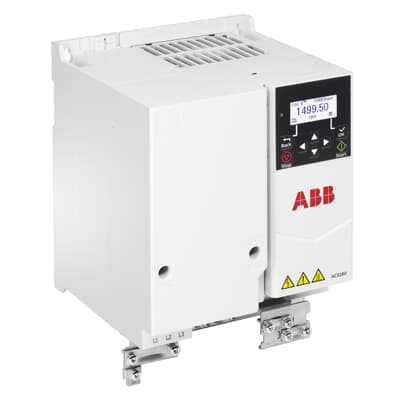

ACS180-04N-25A0-4
Key Features
- 1Designed for 0.37 to 22 kW, offering excellent speed and torque control.
- 2Easy to install and commission with a compact size, reducing cabinet space.
- 3Built with coated circuit boards and reliable earth fault protection for high reliability.
- 4Intuitive graphical user interface and simple parameter structure for quick setup.
- 5Accessible via Bluetooth control panel for remote monitoring and parameter adjustment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 3.3 kg | Product Net Depth / Length | 174 mm |
| Product Net Height | 205 mm | Product Net Width | 170 mm |
| Package Level 1 Depth / Length | 284 mm | Package Level 1 Height | 273 mm |
| Package Level 1 Width | 250 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R3 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 17 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 23.8 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 25 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 7.5 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 11 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 11 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | SCIP | ce087935-c5d0-48c8-89ae-769efc3dfb30 Finland (FI) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | FREQUENCY CONVERTER |
| Manufacturer ID | 3AXD50000814190 |
Specifications may be subject to change without notice
