Product Model

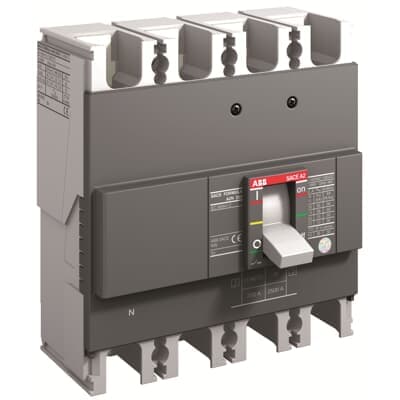

A2B 250 TMF 160-1600 4p F F-DVP
Key Features
- 1Up to 18 kA for reliable short-circuit protection.
- 2Withstood 10,000 mechanical operations and 4,000 electrical cycles.
- 3Fast opening time of 15 ms with SOR and UVR.
- 4Suitable for 160 A main circuit and 250 V DC.
- 5Meets IEC standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 9AKK108467A6707 | Product Net Width | 140 mm |
| Product Net Height | 150 mm | Product Net Depth / Length | 60 mm |
| Product Net Weight | 1.75 kg | Product Main Type | SACE FORMULA DSA |
| Product Name | Moulded Case Circuit Breaker | Product Type | Automatic Circuit Breaker |
| Number of Poles | 4 | Rated Current (In) | 160 A |
| Release | TMF | Remarks | ATLAS - FORMULA DVP |
| Short-Circuit Performance Level | B | Sub-type | A2 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SDA083224R1 |
Specifications may be subject to change without notice
