Product Model
A1C 125 TMF 125-1250 4p F F-DVP
Key Features
- 1High Performance: Designed for reliable operation in industrial settings.
- 2Thermomagnetic Release: Ensures safe and efficient circuit interruption.
- 3Robust Electrical Durability: Withstands 1500 cycles of operation.
- 4Comprehensive Specifications: Rated for 6 kilovolt impulse withstand voltage and 25kA short circuit performance.
- 5Industrial Compatibility: Meets IEC standards, suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 9AKK108467A6707 | Product Net Width | 101.6 mm |
| Product Net Height | 130 mm | Product Net Depth / Length | 60 mm |
| Product Net Weight | 1 kg | Product Main Type | SACE FORMULA DSA |

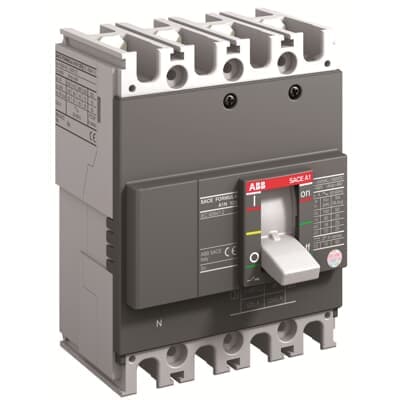

| Product Name | Moulded Case Circuit Breaker | Product Type | Automatic Circuit Breaker |
| Number of Poles | 4P | Rated Current (In) | 125 A |
| Release | TMF | Remarks | ATLAS - FORMULA DVP |
| Short-Circuit Performance Level | C | Sub-type | A1 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SDA083168R1 |
Specifications may be subject to change without notice
