Product Model
3HAC10469-4
Key Features
- 1High precision motor pinion for precise movements and accurate control.
- 2Compatible with ABB IRB140 robots, enhancing overall performance.
- 3Factory warranty of 12 months for reliability and peace of mind.
- 4Designed to meet the stringent requirements of industrial robotics applications.
- 5Ideal for applications requiring high precision and reliability in robotic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Technical Information | Turbo/Standard/Foundry | Replaced Product ID (OLD) | 3HAC13720-1 |
| Customs Tariff Number | 85015220 | Part Type | New |
| WEEE Category | Product Not in WEEE Scope | Product Net Weight | 4.8 kg |
| Gross Weight | 4.8 kg | Product Net Depth / Length | 930 mm |
| Product Net Height | 110 mm | Product Net Width | 90 mm |

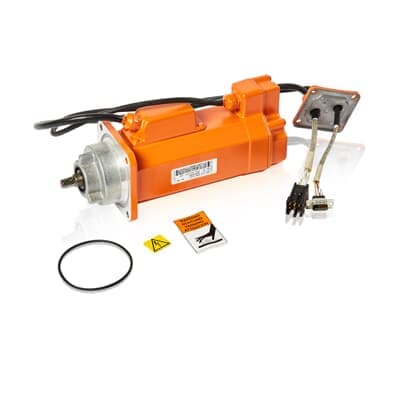

| Frame Size | Spare_Parts | Product Name | Motor incl. pinion |
| ABB Type Designation | 4375rpm 871W / 1,9Nm | Manufacturer ID | 3HAC10469-4 |
Specifications may be subject to change without notice
