Product Model
3HAC059034-002
Key Features
- 1Built with durable materials for long-lasting performance.
- 2Rated voltage of 400V AC and insulation class of Class F.
- 3Designed for consistent operation in demanding industrial environments.
- 4Comprehensive warranty for peace of mind and protection.
- 5Suitable for a wide range of industrial applications, including robotics and automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Technical Information | Axis 5
For IRB 6600 175/2,55 and IRB 6640 180/2,55. | Replaced Product ID (OLD) | 3HAC038443-001 |
| Customs Tariff Number | 85015220 | Part Type | New |
| WEEE Category | Product Not in WEEE Scope | Product Net Weight | 12.6 kg |
| Gross Weight | 12.6 kg | Product Net Depth / Length | 265 mm |
| Product Net Height | 135 mm | Product Net Width | 130 mm |

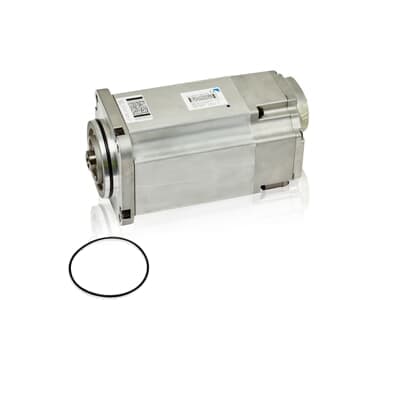

| Frame Size | Undefined | Product Name | Rotational ac motor M7 |
| ABB Type Designation | Std / Foundry+ 3224W / 11Nm | Manufacturer ID | 3HAC059034-002 |
Specifications may be subject to change without notice
