Product Model

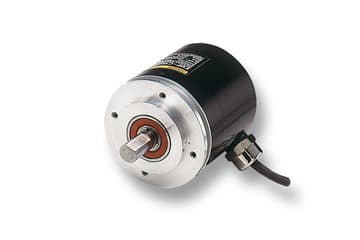

E6F-CWZ5G 600P\u002FR 2M
Key Features
- 1600 pulses per rotation for high precision and accuracy
- 2IP65 rating ensures dust and water jet protection
- 3Supports max. 5000 RPM for high-speed applications
- 4Pre-wired with a 2m radial cable for easy integration
- 5Versatile 12-24 VDC power supply and NPN/PNP output options
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable Length | 2 m | Cable exit | Radial |
| Connection | Pre-wired | Function | Incremental |
| IP rating | IP65 | Max. rotation speed | 5000 |
| Output form | NPN/PNP | Power supply voltage | 12-24 VDC |
| Shaft diameter | 10 | Size (diameter) | 60 |
| Resolution (pulse/rotation) | 600 |
Specifications may be subject to change without notice
