Product Model

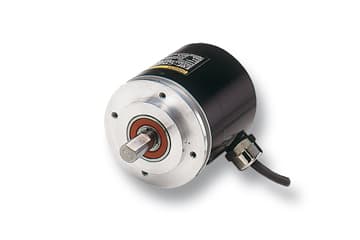

E6F-CWZ5G 500P\u002FR 2M
Key Features
- 12m radial cable exit for easy installation and flexible positioning
- 2High resolution of 500 pulses per rotation for precise measurements
- 3IP65 rating ensures dust and water jet protection in harsh environments
- 4Supports both NPN and PNP output forms for versatile connectivity
- 5Compact 60mm diameter with a 10mm shaft, suitable for tight spaces
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable Length | 2 m | Cable exit | Radial |
| Connection | Pre-wired | Function | Incremental |
| IP rating | IP65 | Max. rotation speed | 5000 |
| Output form | NPN/PNP | Power supply voltage | 12-24 VDC |
| Shaft diameter | 10 | Size (diameter) | 60 |
| Resolution (pulse/rotation) | 500 |
Specifications may be subject to change without notice
