Product Model

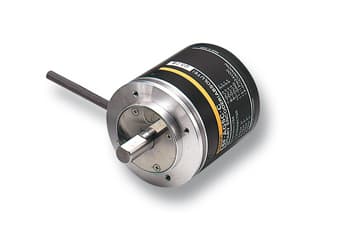

E6F-AB3C 360 5M
Key Features
- 1360 pulses per rotation for precise and accurate positioning
- 2IP65 rating ensures dust and water jet protection
- 3Supports high-speed operations with a max rotation speed of 5000 RPM
- 45m pre-wired cable for easy and reliable connections
- 5NPN open collector output for versatile industrial applications
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable exit | Radial | Connection | Pre-wired |
| Function | Absolute | IP rating | IP65 |
| Max. rotation speed | 5000 | Shaft diameter | 10 |
| Size (diameter) | 60 | Resolution (pulse/rotation) | 360 |
| Cable Length | 5 m | Output form | NPN open collector |
| Power supply voltage | 5-12 VDC |
Specifications may be subject to change without notice
