Product Model

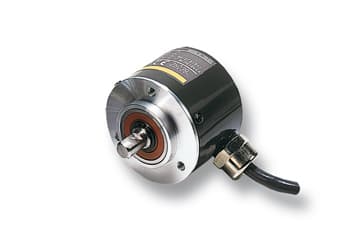

E6C3-AB5C 12P\u002FR 2M
Key Features
- 1High precision with 12 pulses per rotation for accurate position sensing
- 2Robust IP65 protection against dust and water for harsh environments
- 3Supports high-speed applications with a maximum rotation speed of 5000 RPM
- 4Pre-wired with a 2-meter cable for easy installation and setup
- 5Versatile 12-24 VDC power supply range for compatibility with various systems
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable exit | Radial | Connection | Pre-wired |
| Function | Absolute | IP rating | IP65 |
| Max. rotation speed | 5000 | Shaft diameter | 8 |
| Size (diameter) | 50 | Resolution (pulse/rotation) | 12 |
| Cable Length | 2 m | Output form | NPN open collector |
| Power supply voltage | 12-24 VDC |
Specifications may be subject to change without notice
