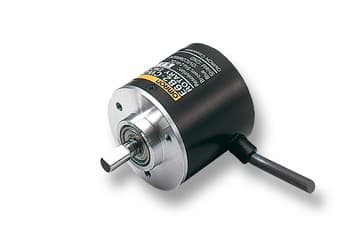

Product Model
E6B2-CWZ6C 100P\u002FR 2M
Key Features
- 1Incremental encoder with 100 pulses per rotation for precise measurement
- 2Pre-wired with a 2-meter cable for easy installation and connection
- 3IP50 protection rating ensures reliable performance in industrial environments
- 4Supports a wide power supply range of 5-24 VDC for versatile use
- 5Compact 40mm diameter and 6mm shaft diameter for space-efficient design
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable exit | Radial | Connection | Pre-wired |
| Function | Incremental | IP rating | IP50 |
| Max. rotation speed | 6000 | Shaft diameter | 6 |
| Size (diameter) | 40 | Resolution (pulse/rotation) | 100 |
| Cable Length | 2 m | Output form | NPN open collector |
| Power supply voltage | 5-24 VDC |
Specifications may be subject to change without notice
