Product Model

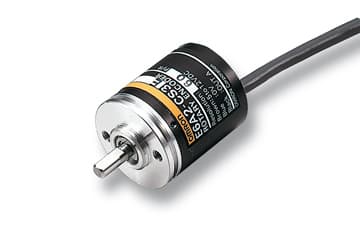

E6A2-CW3C 100P\u002FR 2M
Key Features
- 1Incremental encoder with 100 pulses per rotation for precise measurement
- 2Pre-wired with a 2m straight cable for easy installation and connectivity
- 3NPN open collector output for reliable signal transmission in industrial settings
- 4Supports a wide power supply range of 12-24 VDC for versatile use
- 5IP50 rating ensures protection against dust, enhancing durability and longevity
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable exit | Straight | Connection | Pre-wired |
| Function | Incremental | IP rating | IP50 |
| Max. rotation speed | 5000 | Shaft diameter | 4 |
| Size (diameter) | 25 | Resolution (pulse/rotation) | 100 |
| Cable Length | 2 m | Output form | NPN open collector |
| Power supply voltage | 12-24 VDC |
Specifications may be subject to change without notice
