Product Model

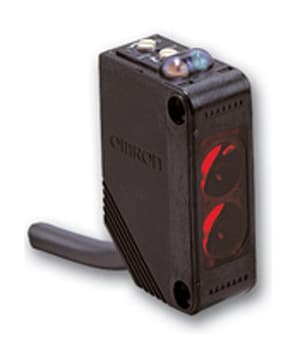

E3Z-B62
Key Features
- 1High Accuracy Detection: Detects transparent objects with high precision.
- 2Compact Design: Cuboid shape with dimensions 10.8 mm x 31 mm x 20 mm.
- 3Long Sensing Distance: Effective up to 2 m with a minimum of 500 mm.
- 4Versatile Operation: Supports both Light-ON and Dark-ON operation modes.
- 5Durable Construction: IP67 rated for harsh environments and water resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Body Type | Rectangular - Compact | Housing Material | Plastic |
| Light Source | Red LED | Operation | L-ON/D-ON selectable |
| Sensing Method | Retro-reflective | Supply Voltage | 12 to 24 VDC |
| Output | NPN | Max Sensing Distance | 2 m |
| Connection | Pre-wired | Cable Length | 2 m |
Specifications may be subject to change without notice
