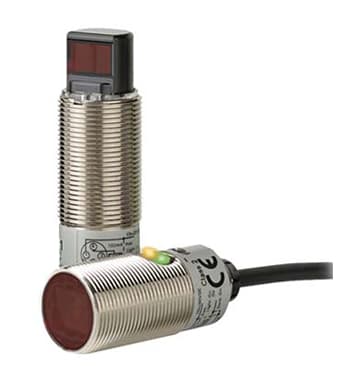

Product Model
E3FB-BP11 2M
Key Features
- 1High Accuracy: 0.5 ms response time ensures precise detection.
- 2Robust Construction: Brass, nickel-plated housing for durability.
- 3Wide Sensing Range: Detects transparent objects up to 500 mm.
- 4Enhanced Protection: IP67/IP69K rating for harsh environments.
- 5Flexible Operation: PNP output with Light-ON/Dark-ON operation modes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Body Type | Threaded Cylindrical | Housing Material | Nickel Plated Brass |
| Operation | L-ON/D-ON wire selectable | Sensing Direction | Radial |
| Size | M18 | Type | Compact Sensor |
| Sensing Method | Retro-reflective | Output | PNP |
| Max Sensing Distance | 0.5 m | Connection | Pre-wired |
| Cable Length | 2 m | Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
Specifications may be subject to change without notice
