Product Model

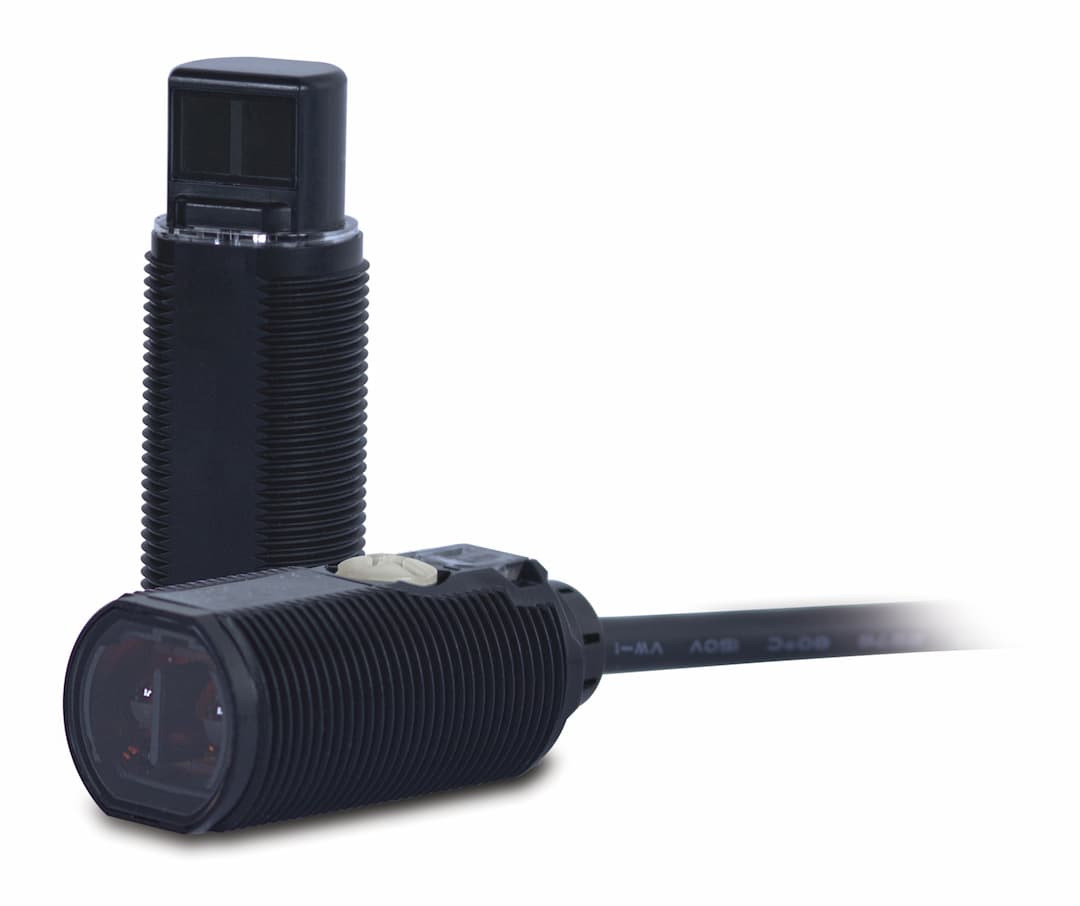

E3FA-RN21
Key Features
- 1High accuracy with a response time of 0.5 ms.
- 2Durable ABS housing for long-lasting performance.
- 3Retro-reflective sensing method for precise detection.
- 4NPN output and Light-ON/Dark-ON operation modes.
- 5IP67/IP69K protection for harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Body Type | Threaded Cylindrical | Housing Material | Plastic |
| Sensing Direction | Straight | Size | M18 |
| Supply Voltage | 10 to 30 VDC | Type | Short body |
| Sensing Method | Retro-reflective | Output | NPN |
| Max Sensing Distance | 4 m | Connection | M12 4-pin connector |
| Light Source | Red LED | Operation | L-ON/D-ON selectable |
Specifications may be subject to change without notice
