Product Model

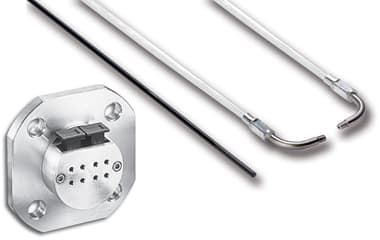

E32-T84SV 1M
Key Features
- 1High accuracy in through-beam detection
- 2Heat-resistant up to 200°C and vacuum-resistant
- 3Cylindrical radial shape with a diameter of 3 mm
- 41 m cable length with a bending radius of 25 mm
- 5Free cut capability for customized applications
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable type | Standard | Core material | Glass |
| Cut to length | No | Sensor type | Through-beam |
| Special function | Vacuum Resistant | Maximum temperature | 200掳C |
| Bending radius | R25 | Minimum sensing object | 0.1 dia. |
| Cable length | 1 m | Sensing head diameter | 3 dia. |
| Sensing head length | 30 mm |
Specifications may be subject to change without notice
