Product Model

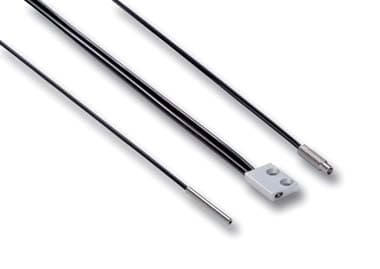

E32-T11 5M
Key Features
- 1High Precision Sensing: The E32-T11 fiber sensor provides precise measurements with minimal error.
- 2Long Sensing Distance: With a sensing distance of up to 4,000 mm, it covers a wide range of industrial applications.
- 3Flexible Installation: Easy to install with flexible cable options and adaptable mounting screws.
- 4Robust Design: Built with durable materials, including methacrylate resin and ABS, ensuring long-lasting performance.
- 5Versatile Models: Available in various configurations to suit different industrial needs, including right-angle and top-view models.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable type | Break-Resistant | Core material | Plastic |
| Cut to length | Yes | Special function | Bending/Disconnect Resistant |
| Sensor Type | Through-beam | Bending radius | R4 |
| Minimum sensing object | 5 渭m dia. | Cable length | 5 m |
| Sensing head diameter | M4 | Sensing head length | 14 mm |
Specifications may be subject to change without notice
