Product Model

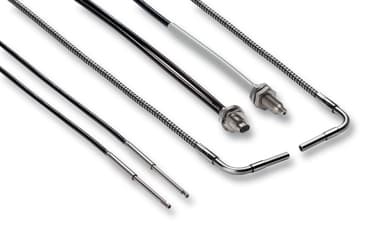

E32-D51 3M
Key Features
- 1High accuracy diffuse sensor with a sensing head diameter of M6.
- 2Heat-resistant up to 150°C, ensuring reliable performance in harsh environments.
- 3Standard cable length of 3 meters, with the option to cut to length.
- 4Minimum sensing object diameter of 5 μm, providing detailed object detection.
- 5New factory-sealed condition with manufacturer warranty for added reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable type | Standard | Sensor type | Diffuse |
| Special function | Heat Resistant | Maximum temperature | 150掳C |
| Bending radius | R35 | Minimum sensing object | 5 渭m dia. |
| Core material | Plastic | Cable length | 3 m |
| Cut to length | Yes | Sensing head diameter | M6 |
| Sensing head length | 17 mm |
Specifications may be subject to change without notice
