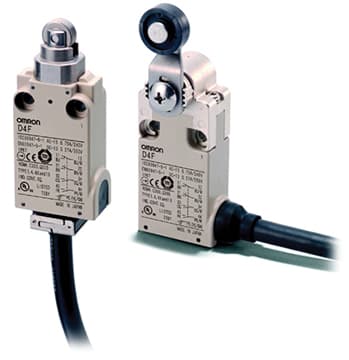

Product Model
D4F-120-1D
Key Features
- 1Ultra-compact design for space-saving installations.
- 2High sensitivity for precise safety monitoring.
- 3IP67 protection against dust and water.
- 4Available with 1NC/1NO, 2NC, and 2NC/2NO contact configurations.
- 5Direct opening mechanism ensures reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conduit Size | Pre-wired | Max Actuation Frequency | 30 operations/min |
| Max Actuation Speed (Operating Speed?) | 1 mm/s to 0.5 m/s | Cable Length | 1 m |
| Cable Entrance | Vertical | Contact | 1NC/1NO (slow-action) |
| Actuator | Roller lever (metal lever, resin roller) |
Specifications may be subject to change without notice
