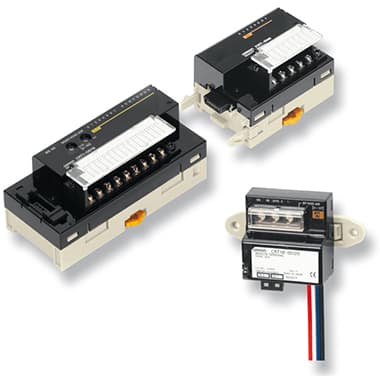

Product Model
CRT1-OD08SL
Key Features
- 18-point DC NPN output module for efficient signal handling
- 2Cage clamp terminal for secure and easy wiring connections
- 324VDC output voltage with 0.5A current per point for robust performance
- 42.0A total current per common for high-power applications
- 5Quick 0.5ms on time and 1.5ms off time for fast response
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Terminal Type | Cage Clamp | Output Type | DC NPN |
| Number of Output Points | 8 | Number of Outputs Per Common | 8 |
| Output Voltage | 24 VDC | Output Current Per Point | 0.5 A |
| Output Current Per Common | 2.0 A | Output On Time | 0.5 ms |
| Output Off Time | 1.5 ms | Mounting | DIN Rail |
Specifications may be subject to change without notice
