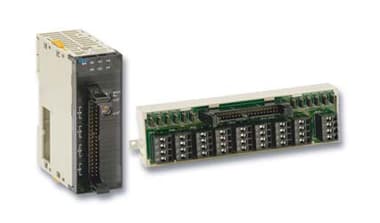

Product Model
CJ1W-NC233
Key Features
- 1High-Precision Motion Control: Achieve precise positioning with the CJ1W-NC233's advanced motion control capabilities.
- 22-Axis Positioning: Control two axes simultaneously with ease, suitable for complex motion applications.
- 3Line-Driver Output: Utilize line-driver output for reliable and efficient signal transmission.
- 4Wide Operating Temperature Range: Operate in temperatures from 0 to 50°C, ensuring stable performance in various environments.
- 5Compact Design: Compact dimensions (90 x 31 x 65 mm) make it ideal for space-constrained applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Compatible servo drives | SmartStep2 R7D-B | Position control | Yes |
| Interrupt feeding | Yes | Linear interpolation | Yes |
| Encoder Input Type | Line driver | Maximum Input Frequency | 500 kps |
| Digital Input | Interrupt, E-stop, Origin Proximity, CW Limit, CCW Limit, Origin | Digital Input Type | NPN/PNP |
| Digital Outputs | Error Counter Reset | Digital Output | NPN |
| Number of Axis | 2 | Output Type | Line driver |
| Maximum Output Frequency | 500 kps | Connector type | 1 x Fujitsu |
Specifications may be subject to change without notice
